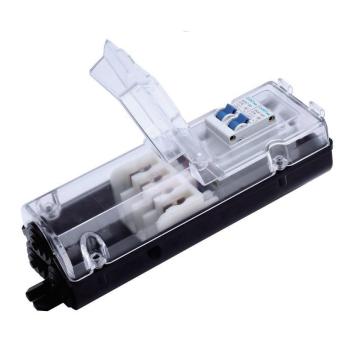

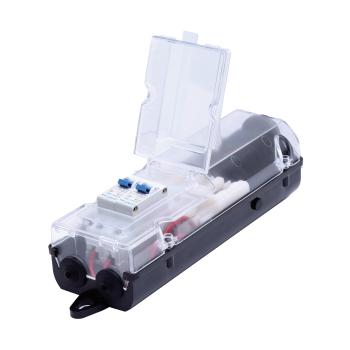

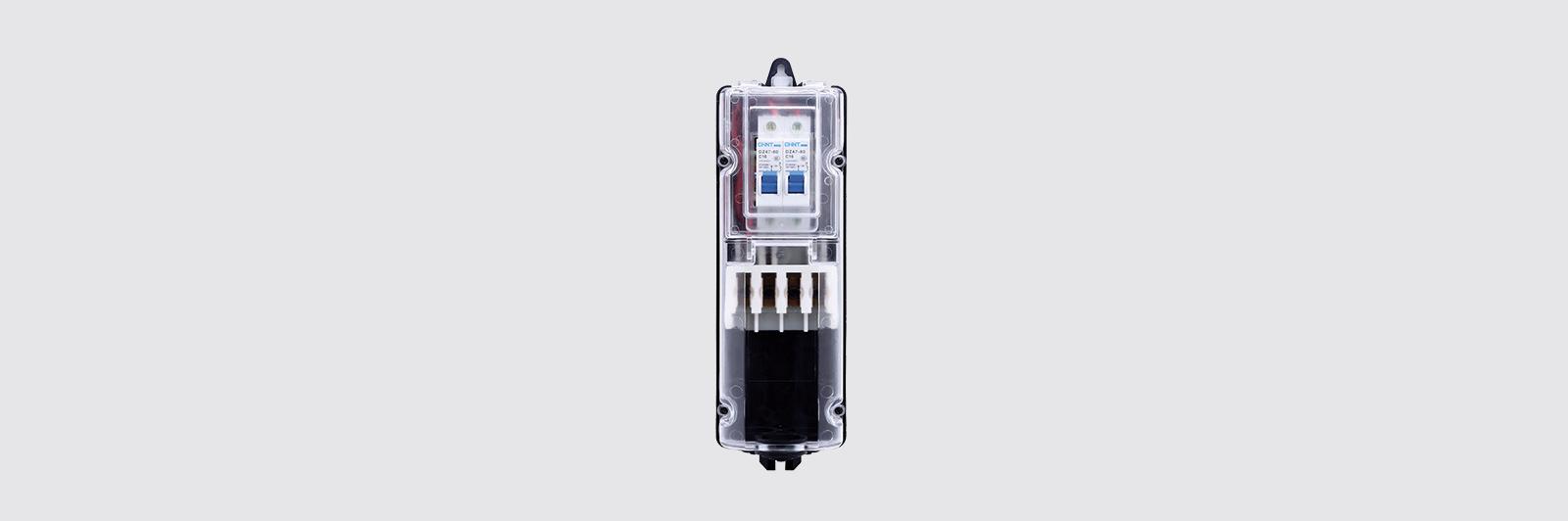

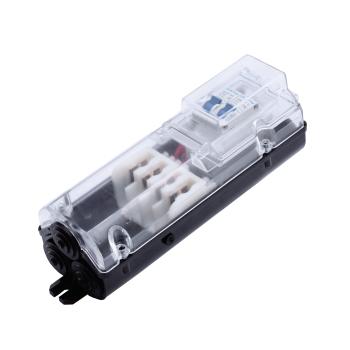

Wiring box
M696 (MCB / Switch type)
Technical information
| Parameter | Technical data | Parameter | Technical data |
| Color | Black box with transparent cover |
Connect method | M3 screws |
| Ampere | Input 80A, Output 16A |
Box fixing method | Fixing lugs |
| Operation voltage | Input 500VAC, Output 450VAC |
Housing material | PC V2 Fire Retardant |
| Cross section | 4~35mm² |
Waterproof | IP54 |
| Conductor fixing material | PA66 |
Working temperature | T110 |
| Conductor material | H62 copper x4 |
Certificate | CE |
