RETROFIT

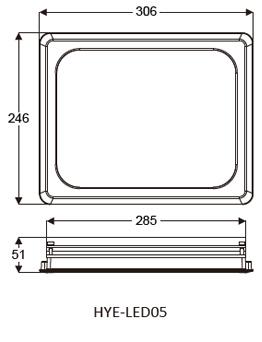

  HYE-LED05



MORE INFORMATION

Technical information

Parameter Technical data Parameter Technical data
Lifetime Up to 100.000 hrs LM70,Ta 25°C
 Driver isolation Class I
Wattags 60~150W
 Control dimming 1-10V / PWM
Light efficacy Up to 150 lm/W
 Operating temperature -35℃~50℃ / 10% ~ 95% (humidity)
CRI ≥ 70 o ≥ 80 Body parts material Die cast Aluminum
Color temperature 3000K, 4000K, Amber color Optic PC (standard) / PMMA (option)
Operation voltage CA 90-305V o CA 220-240V Screen Flat tempered glass 5mm thickness
Frequency 50 / 60Hz Gasket Silicone
Power factor ≥0.95  Color stability 3 or 5 MacAdam steps

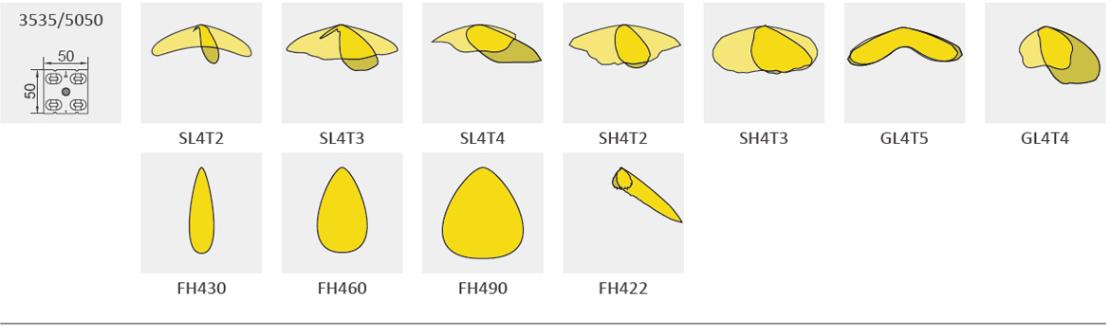

Optics Available

Details
Order code Chip LED QTY Lens Type Power(W) LM LM/W
90501
 5050 36
 4 60 9000 150
90502
 5050 36
 4 70 10500 150
90503
 5050 36 4 80 12000 150
90504
 5050 48 4 100 13500 150
90505
 5050
 48
 4 100 15000 150
90506
 5050
 48
 4 110 16500 150
90507
 5050
 48
 4 120 18000 150
90508
 5050
 72 4 130 19500 150
90509
 5050
 72 4 140 21000 150
90510
 5050
 72 4 150 22500 150

* 5050: LUMILEDS 5050; 3535: CREE XPG3; 3030: LUMILEDS 3030
Lm: This data is tested under normal working condition, the actual data will depends on environment condition, optics/diffuser and CCT.
